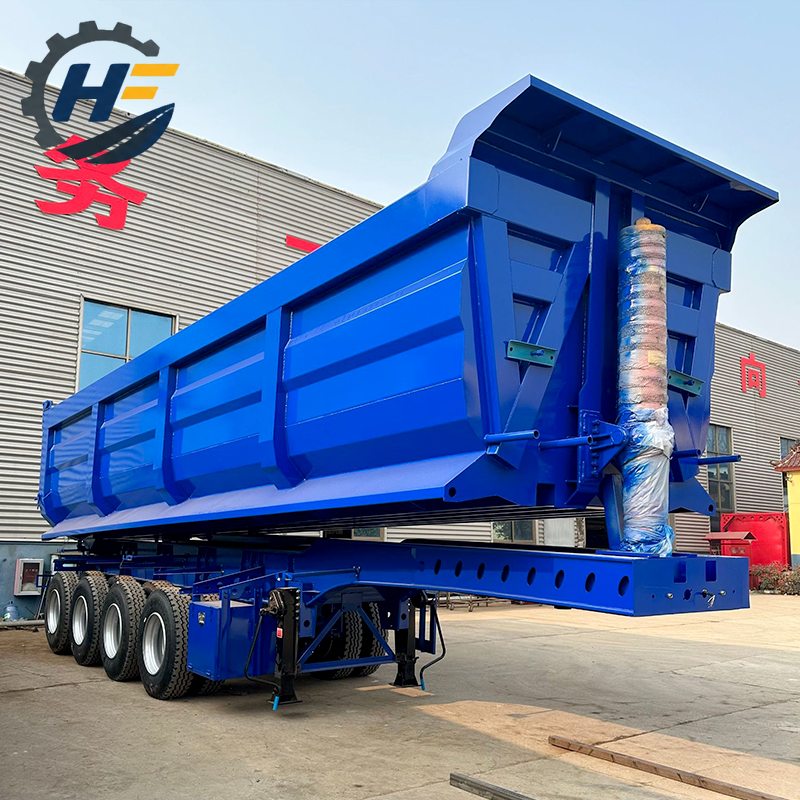

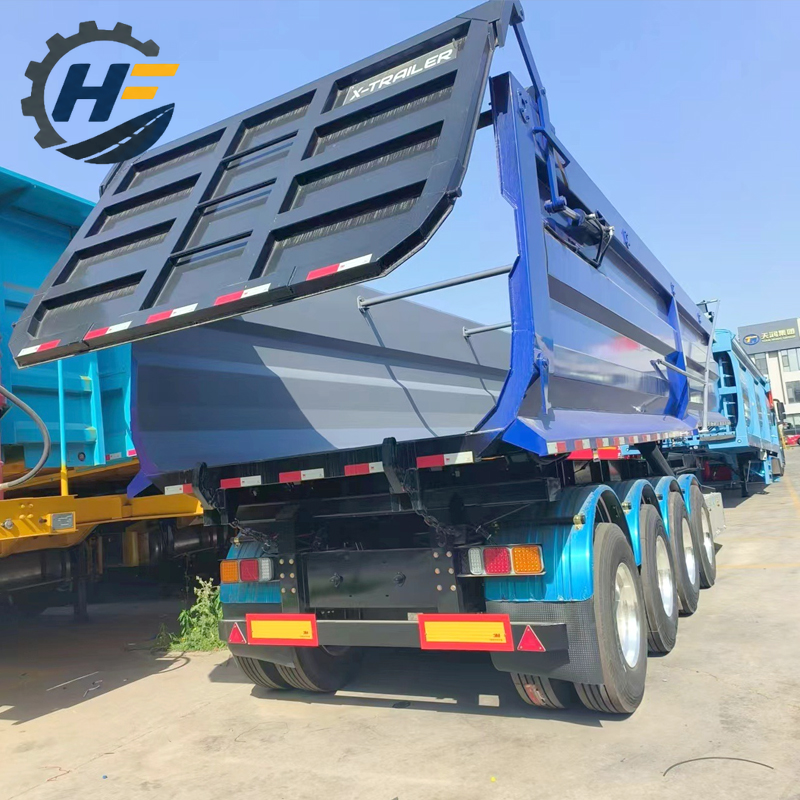

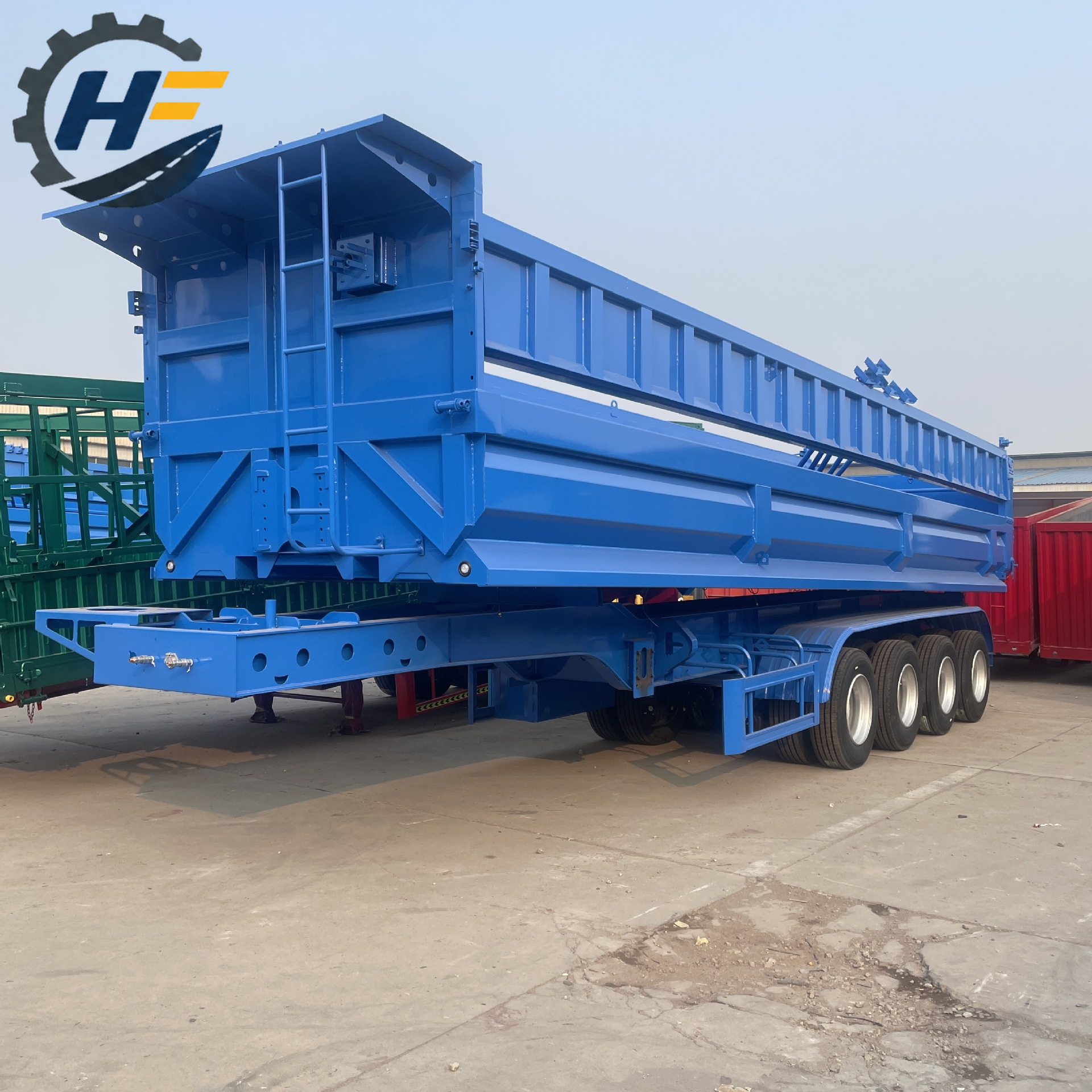

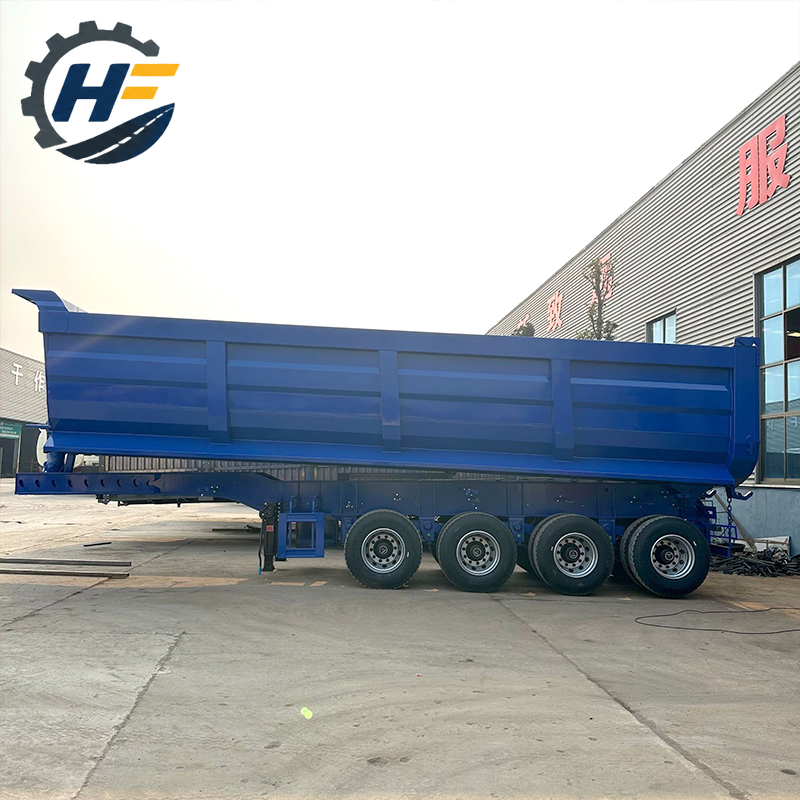

4 Axle U Shape Tipper Trailer

The vehicle adopts advanced computer aided design software to optimize the design, according to the vehicle bearing quality requirements, the finite element analysis of the frame, scientific design, reasonable load division, the same load, effectively reduce the product weight, can effectively improve the loading and unloading and transportation efficiency.

+8618000000000

18000000000@qq.com

+8618000000000

Contact Us

◉ PRODUCT DISPLAY

◉ 4 Axle U Shape Tipper Trailer

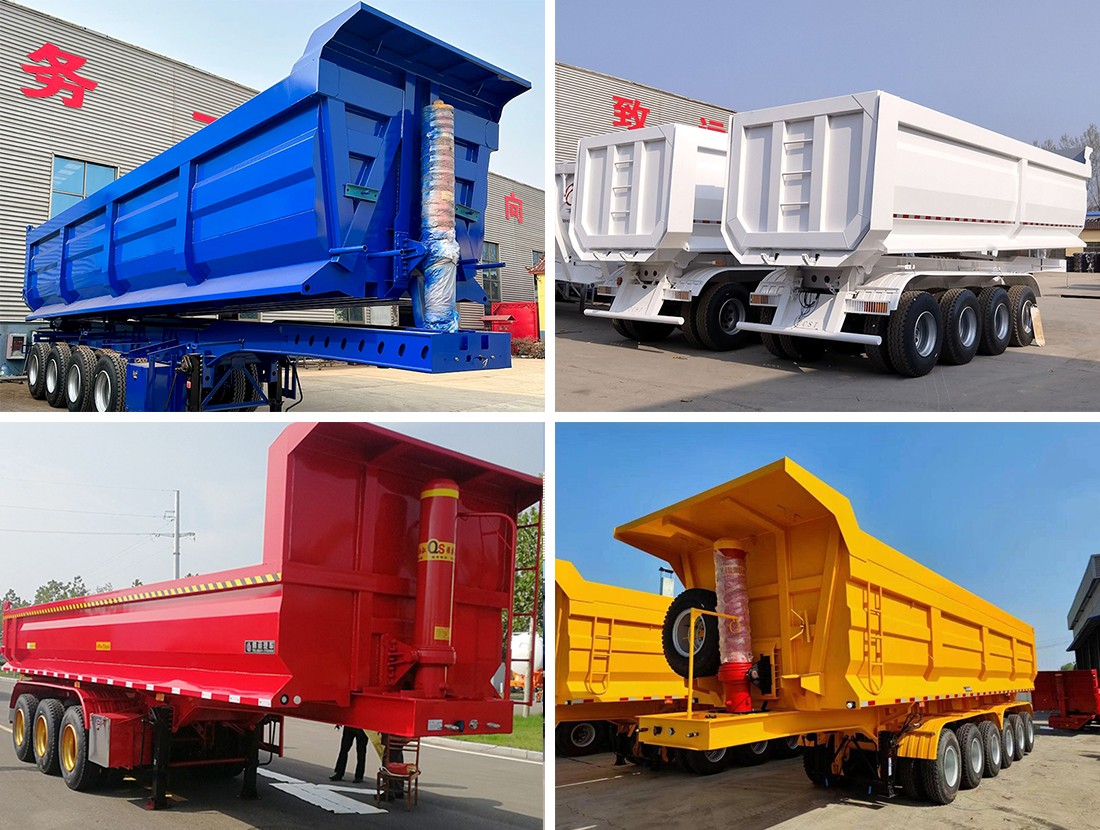

U-Shaped Tipper Trailers are mainly used to transport bulk goods such as coal, ore, and building materials. Its advantages include:

Efficient unloading: U-shaped cargo box design, no dead angle, cleaner unloading, and improved transportation efficiency.

Light weight: The structure is optimized and high-strength plates are used to reduce the weight of the carriage and improve the load utilization factor.

Strong carrying capacity: High-strength steel plates are used, with high yield strength, better impact resistance and fatigue resistance.

In summary, U-Shaped Tipper Trailers play an important role in logistics and transportation with their high efficiency, lightness and strong carrying capacity.

Our factory has partners in Africa, South America, Central Asia and other countries, and can be customized according to different road conditions and transportation materials. Welcome to consult.

◉ PRODUCT PARAMETERS

Product features

Self-dumping semi-trailer is suitable for loading and unloading and transporting coal, sand, stone, grain, ore, building materials, etc.

The carriage adopts the back turning mode to improve the loading and unloading efficiency of the loader, and the unloading is fast and clean.

Unique plate design, both back dump, plate, plate triple function.

The frame and the longitudinal beam of the carriage are welded with high quality manganese plate, which has the advantages of high strength, strong lifting force, stiffness, toughness, strong bearing capacity, and is not easy to permanent deformation.

All our products can be customized

A variety of types to choose from: ordinary backflip/ skeleton backflip/ flat backflip/ bar backflip/ U-shaped backflip
2/ 3/ 4/ 6 axes can be selected to support multi-axis customization for overseas customers.
Girder specifications, suspension options, suitable for a variety of road conditions, cargo, load.
The length, height and material of the box can be customized to adapt to the transportation of different goods.
The rear door can be opened in various ways to meet the requirements of different scenarios.

Vehicle Description
Overall dimension	9200×2550×3550mm
Curb weight	7800kg
Axle	FUWA 13T×3 sets
Suspension	Mechanical
King Pin	90# or 50# traction pin
Landing leg	TFOC , or other brand
Tire specification	315/80R22.5
Tire quantity	12 units
Up-parts Description
Loading capacity	35cbm
Dumper box material	Carbon steel
Thickness	Side	6mm, 8mm, 10mm
	Bottom	8mm, 10mm, 12mm
Cargo shape	U-shape, or rectangular
Hydraulic system	HYVA brand or, other brand
Optional	Tanker material: high strength steel Axle: BPW, HUAJING Suspension: air suspension Tire: 12.00R20, 315/80R22.5 ABS

◉ PACKAGING AND TRANSPORTATION

◉ FAQ

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
