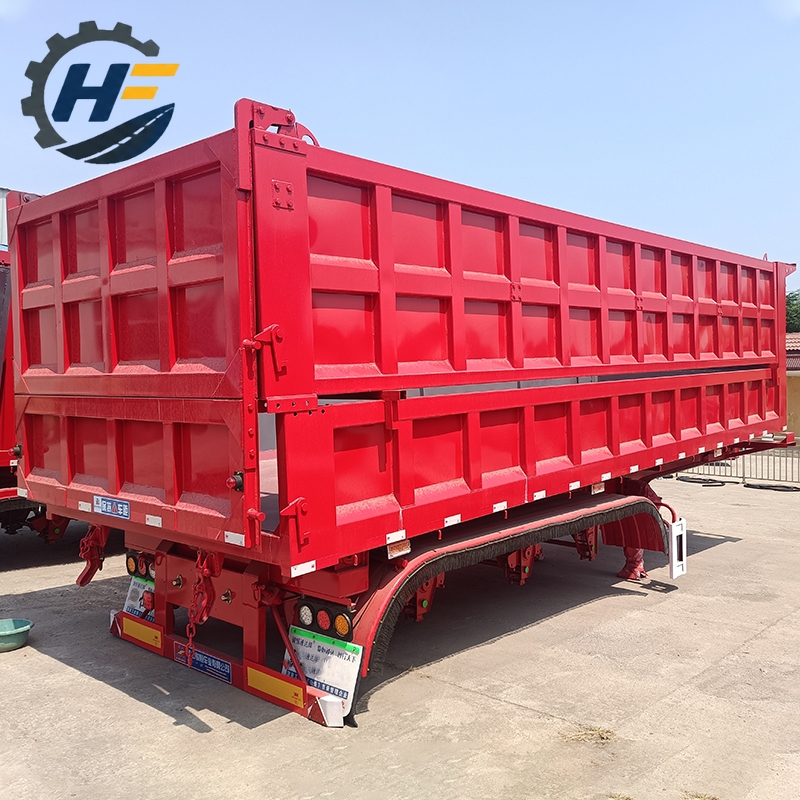

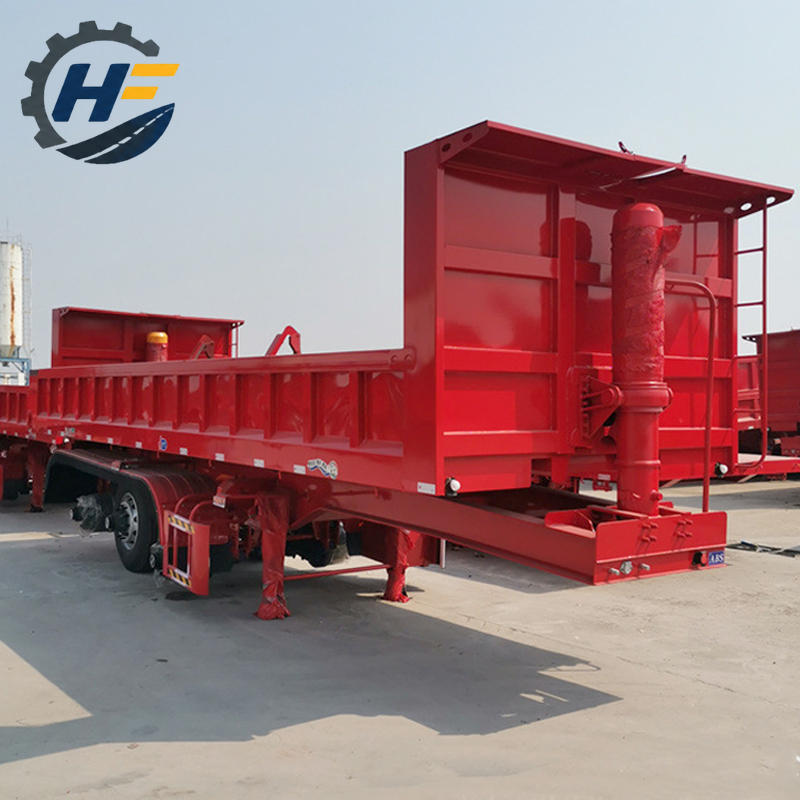

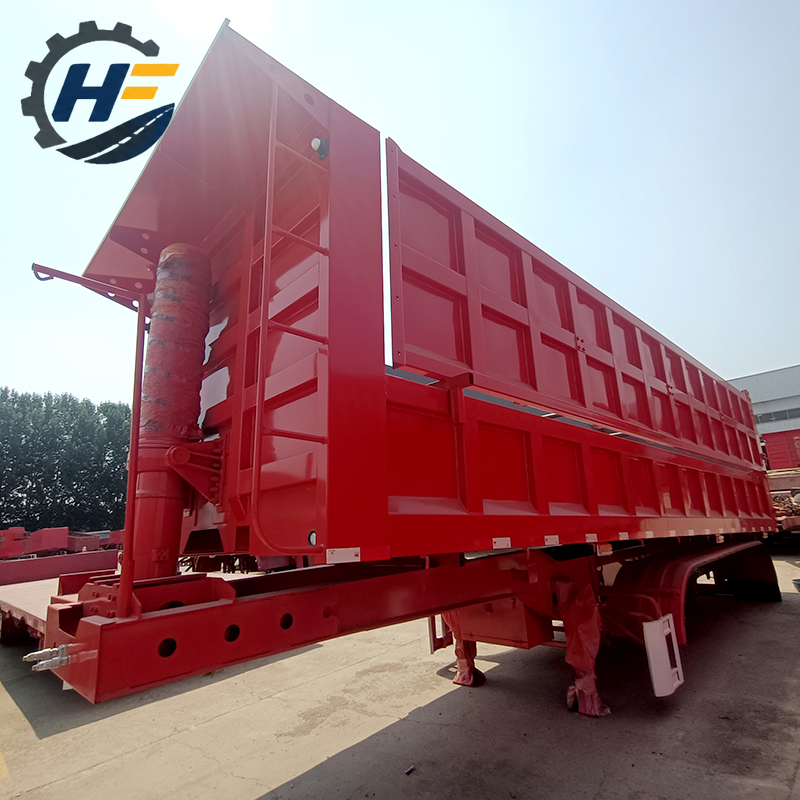

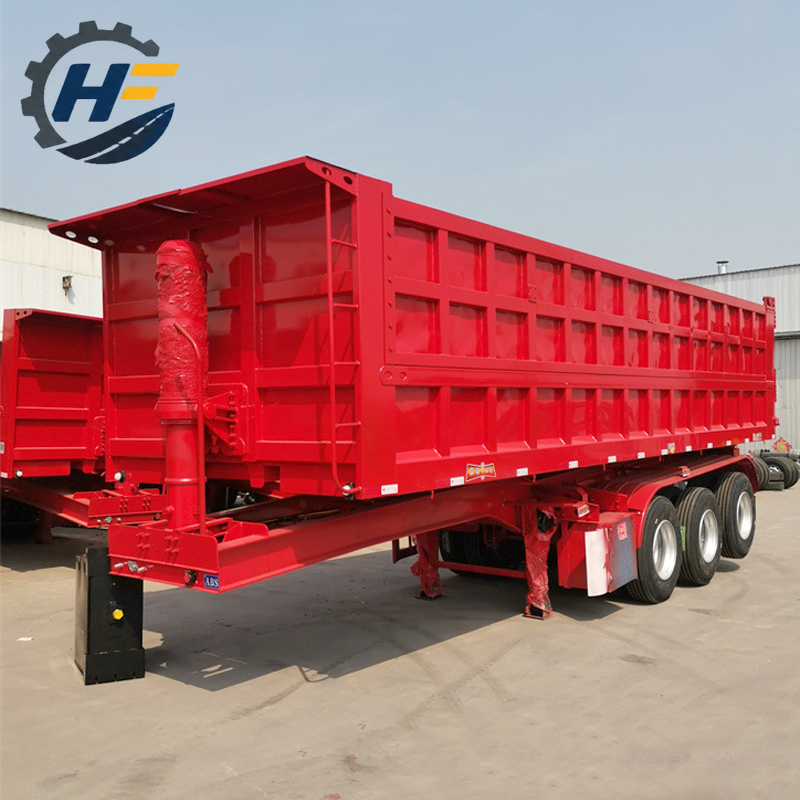

3 Axles Dumper Trailers

The Dumper Trailers adopts advanced computer aided design software to optimize the design, according to the vehicle bearing quality requirements, the finite element analysis of the frame, scientific design, reasonable load division, the same load, effectively reduce the product weight, can effectively improve the loading and unloading and transportation efficiency.

+8618000000000

18000000000@qq.com

+8618000000000

Contact Us

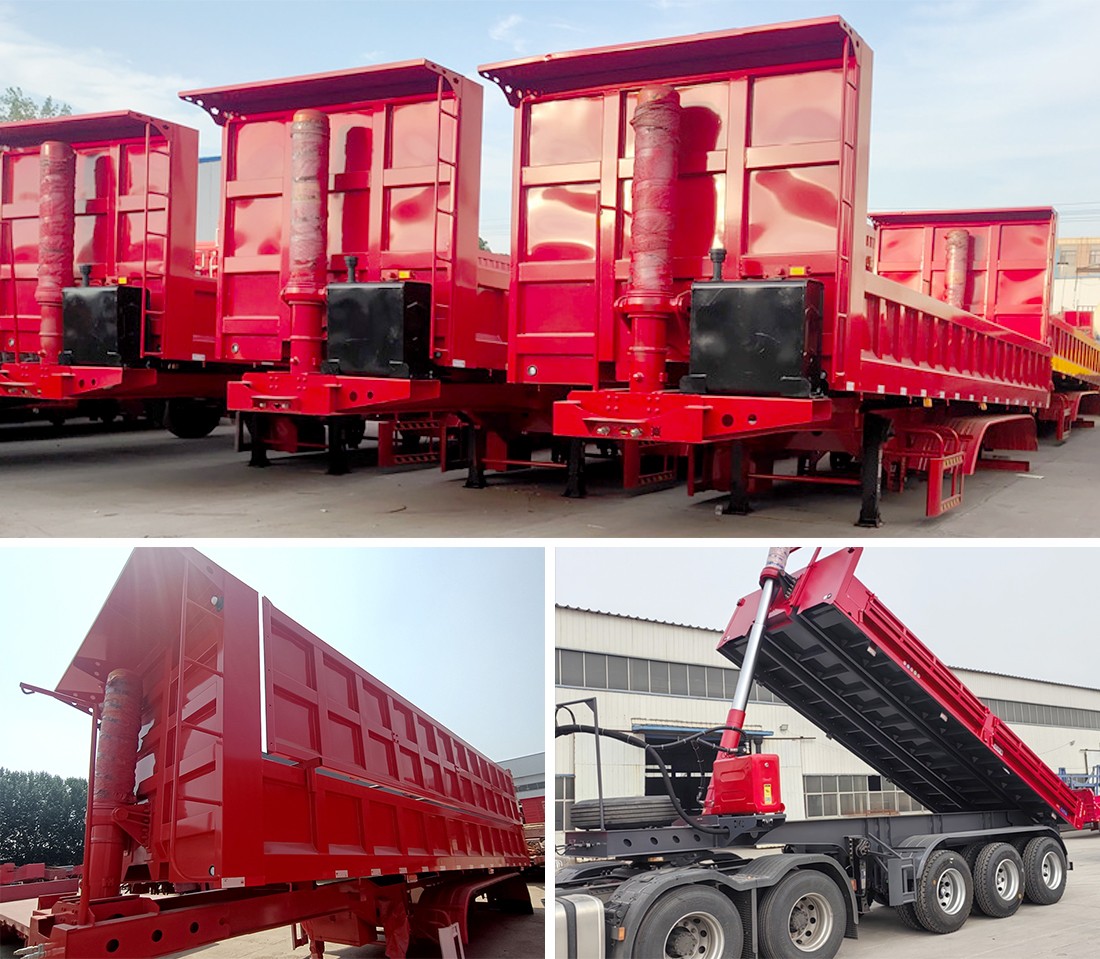

◉ PRODUCT DISPLAY

◉ 3 Axles Dumper Trailers

◉ PRODUCT PARAMETERS

Product features

Self-dumping semi-trailer is suitable for loading and unloading and transporting coal, sand, stone, grain, ore, building materials, etc.

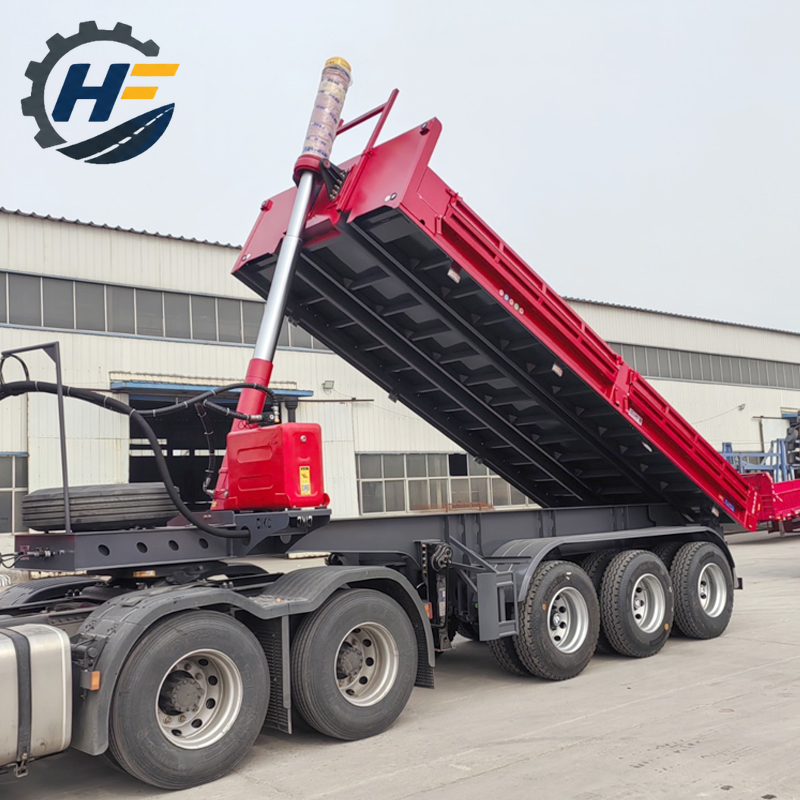

The carriage adopts the back turning mode to improve the loading and unloading efficiency of the loader, and the unloading is fast and clean.

Unique plate design, both back dump, plate, plate triple function.

The frame and the longitudinal beam of the carriage are welded with high quality manganese plate, which has the advantages of high strength, strong lifting force, stiffness, toughness, strong bearing capacity, and is not easy to permanent deformation.

All our products can be customized

A variety of types to choose from: ordinary backflip/ skeleton backflip/ flat backflip/ bar backflip/ U-shaped backflip
2/ 3/ 4/ 6 axes can be selected to support multi-axis customization for overseas customers.
Girder specifications, suspension options, suitable for a variety of road conditions, cargo, load.
The length, height and material of the box can be customized to adapt to the transportation of different goods.
The rear door can be opened in various ways to meet the requirements of different scenarios.

Type	Dump Truck Semi Trailer
Dimension	11280×2495×3970mm (can be customized)
Tare Weight	About 10-15T
Total Volume	30m³ or less than 80tons
Main Beam	Q345B Steel
Side Wall Thickness(mm)	3mm -6mm Q235 steel
Bottom Plate Thickness(mm)	5mm-8mm Q235 steel or can be optional
King Pin	Jost brand 2.0 or 3.5 inch bolts type welding type
Axle	13T/16T, FUWA/BPW/Huajing Brand
Steel Ring	9.0
Suspension	Mechanical suspention/America Type/Germany Type
Lifting System	Full set of Hyva(FC214-5-07130)Hydralic Lifting Cylinder
Spring Leaf	90(W)mm×13(thickness)mm×10layer or 100mm×12mm×12
Rim	9.0×22.5 / 8.0-20 / 8.5-20 China brand
Tire	12.00R22.5/315/80R22.5/11.00R20/12.00R20 various tire brands are available
ABS	Optional
Relay valve	WABCO
Tire	2 pieces
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber, 45L air tank
Tool Box	One piece, 1m×0.5m×0.5m(size can choose freely)
Painting	1 coat of anticorrosive prime, 2 coats of final paint

◉ PACKAGING AND TRANSPORTATION

◉ FAQ

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
