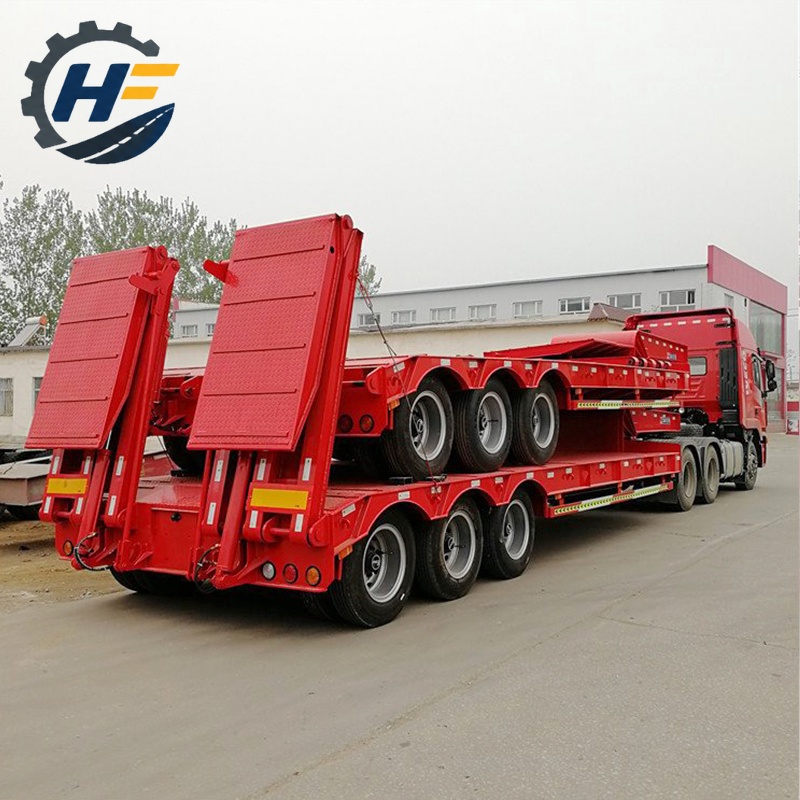

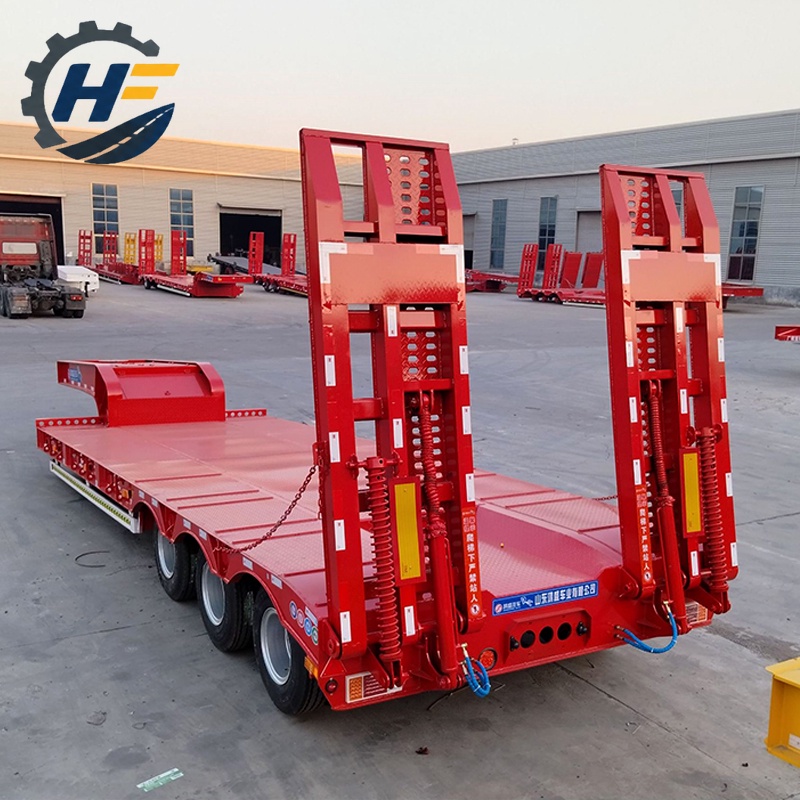

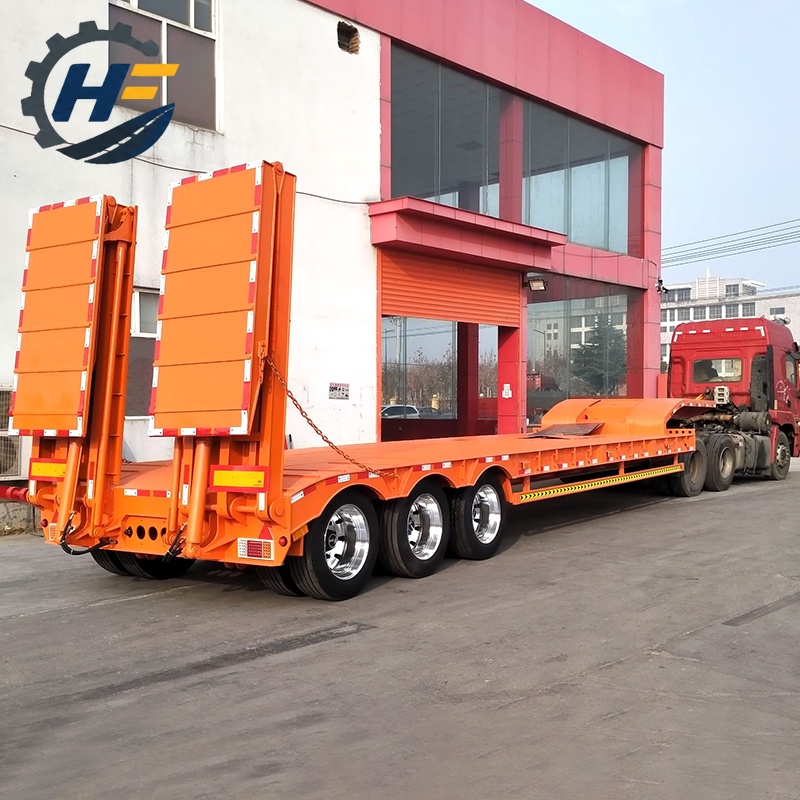

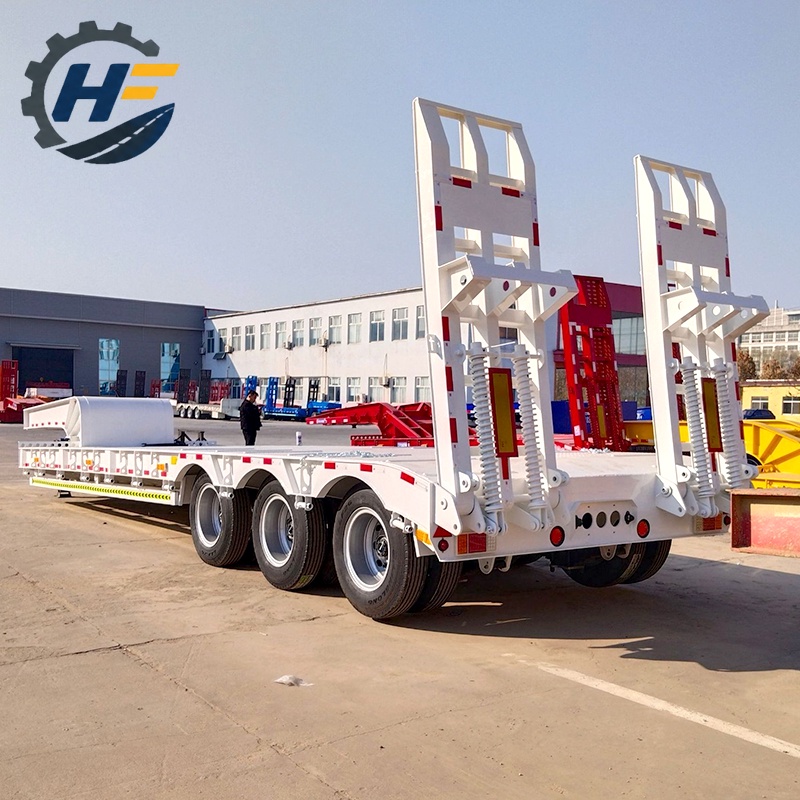

Previous Next 3 Axle 60 Tons Low Bed Semi-Trailer

Dimension: 14000x3000x3750mm (customized according to your requirement)
Capacity: Max.100tons
Axle: 4 axles, BPW / FUWA brand
Landing Gear: JOST brand with two speeds
Suspension: Mechanical suspension reinforced type
Leaf Spring: 90mm(W)*16mm(T)*10pcs
Tire: 315/80R22.5, 12R22.5
Color: Optional

+8618000000000

18000000000@qq.com

+8618000000000

Contact Us

◉ PRODUCT DISPLAY

◉ Previous Next 3 Axle 60 Tons Low Bed Semi-Trailer

Low Bed Semi Trailer is also named Lowboy trailer, Low loader trailer, Drop deck trailer, Low deck trailer, Low loader. Generally, the normal low bed semi-trailer loading capacity is from 30T-120T. For the special requirements on loading capacity or cargo size, customization is necessary. Low loader trailer is the most classic type of low deck and heavy haulage, and all the other lowbed trailers like RGN trailer, Folding neck trailer, Extendable lowbed trailer are designed based on the original feature of conventional lowbed trailer. Gooseneck, long cargo platform, the rear end with wheel and ramp, the three parts are the main structure of low loader. Ultra-low deck, long cargo platform, heavy haulaging are the common features of lowbed trailer.

◉ PRODUCT PARAMETERS

Series of low flat semi-trailer has flat plate, concave beam and tire exposed structure, its frame is stepped, longitudinal beam section is I-shaped, with high stiffness and high strength characteristics.
The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
The use of three-axis balance type, two-axis balance type or rigid suspension, equipped with a mass balance block between the front and rear leaf springs, can make the deflection of the front and rear leaf springs equal changes, so that the front and rear axes are balanced.
Carbon dioxide gas protection welding is adopted, and the entire frame is treated by shot peening, making the vehicle more beautiful.

Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name	2 axles lowbed semi trailer	3 axles lowbed semi trailer	4 axles lowbed semi trailer
Size(mm）	12500×3000×1100	13000×3000×1100	14000×3000×1100
Payload	40000KG	60000KG	80000KG
Plate	4mm checked plate	4mm checked plate	5mm checked plate
Axles	2×13ton capacity	3×13ton capacity	4×13ton capacity
	(Brand optional)	(Brand optional)	(Brand optional)
Ladder	Hydraulic ladder or Mechanical spring ladder
Main beam	Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm
	Material is Q345B Steel
Side beam	250mm I beam; 20mm channel steel ( Material is Q235steel )
Bottom Platform	4mm thickness diamond steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Tire	12R22.5/11.00R20 8pcs (Other size optional)
Rim	9.00-22.5/11.00R20 8pcs (Other size optional)
Kin pin	2’’/3.5’’ bolt type
Landing gear	28Ton two speed
Braking system	Double air chamber, brake valve, 45L air tanks; ABS optional
Electrical	LEDlight, 7ways, 24V
Accessory	One tooling box with a set of standard trailer tool
Painting	1.Sand blasting processing clean rust.
	2.Coat of anticorrosive primer.
	3.Coats of finish urethane paint.
	4.Color as customer choice.
Other Descriptions	The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the transportation.

Usage	It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,power plant equipment or machine, and all sorts of steel products.

Other Specifications	It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm.

Remark	We can design model according to client's requirement

PRODUCT DETAILS

Electrophoresis Painting
Corrosion resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance.

Loading ramp

Suitable slopes, automated operation, equipped with electric or hydraulic systems and slopes designed with expandable functions that can be adjusted to suit different loading requirements.

Mechanical Climbing Ladder
Strong structure and carry capacity, provides effective support and protection for heavy equipment and machineries during loading and unloading process.

Tires
High quality tire brands such as Double Coin/Linglong/Triangle can be optioned for the best performance.

◉ PACKAGING AND TRANSPORTATION

◉ FAQ

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
