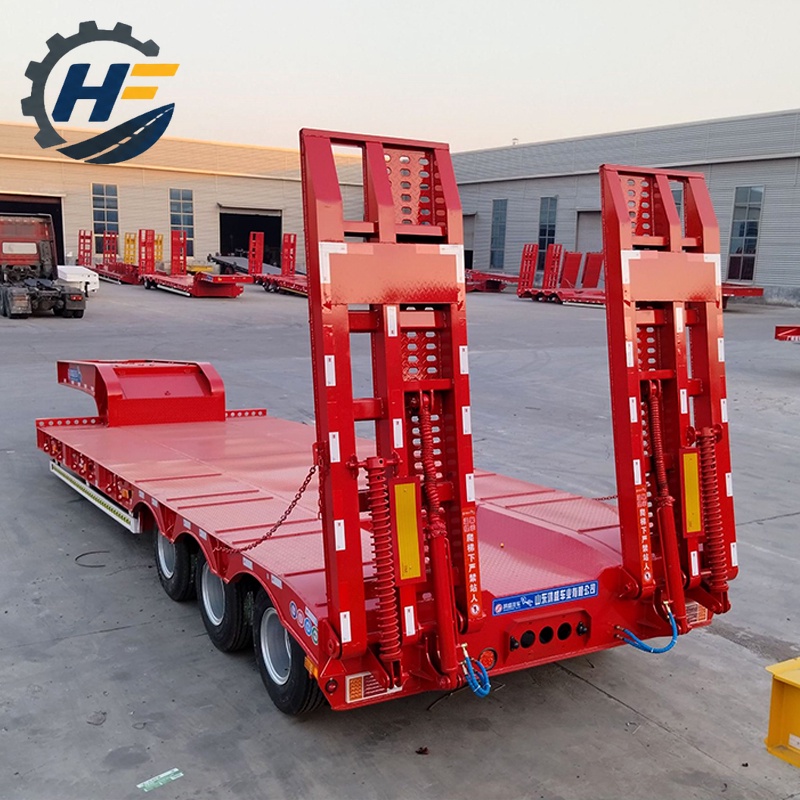

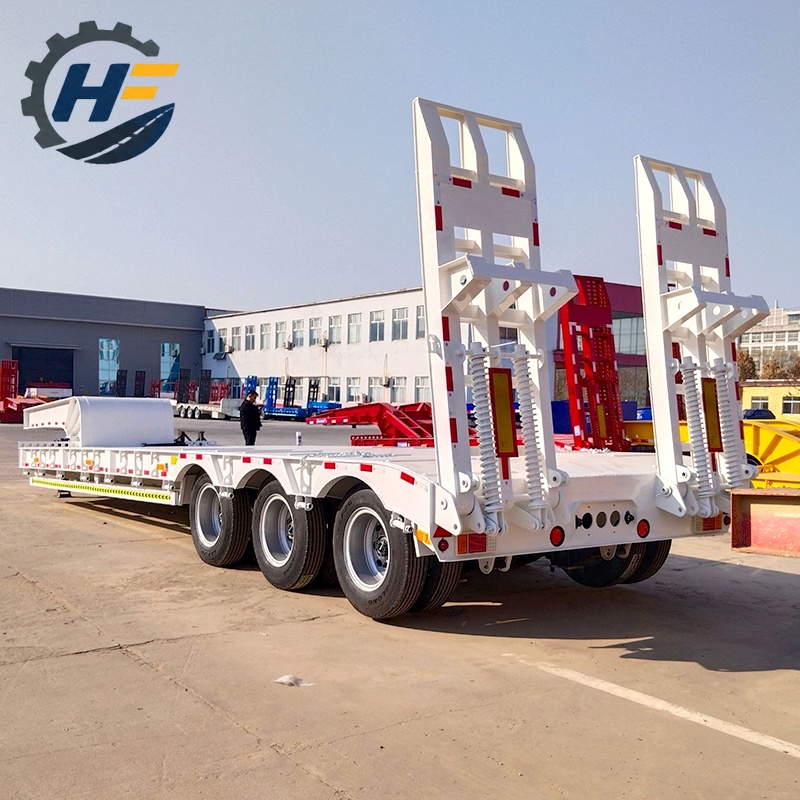

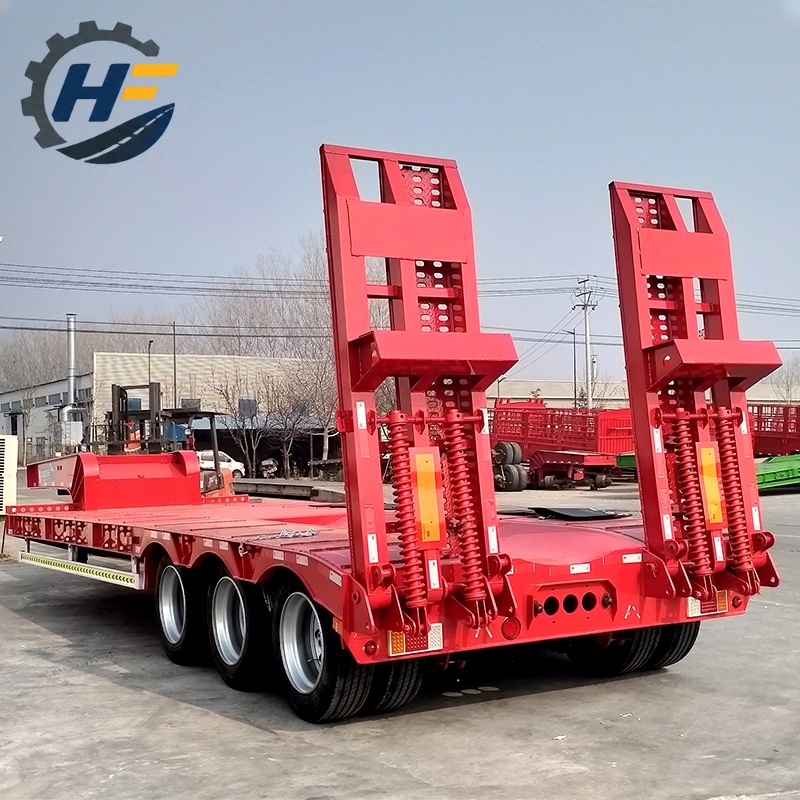

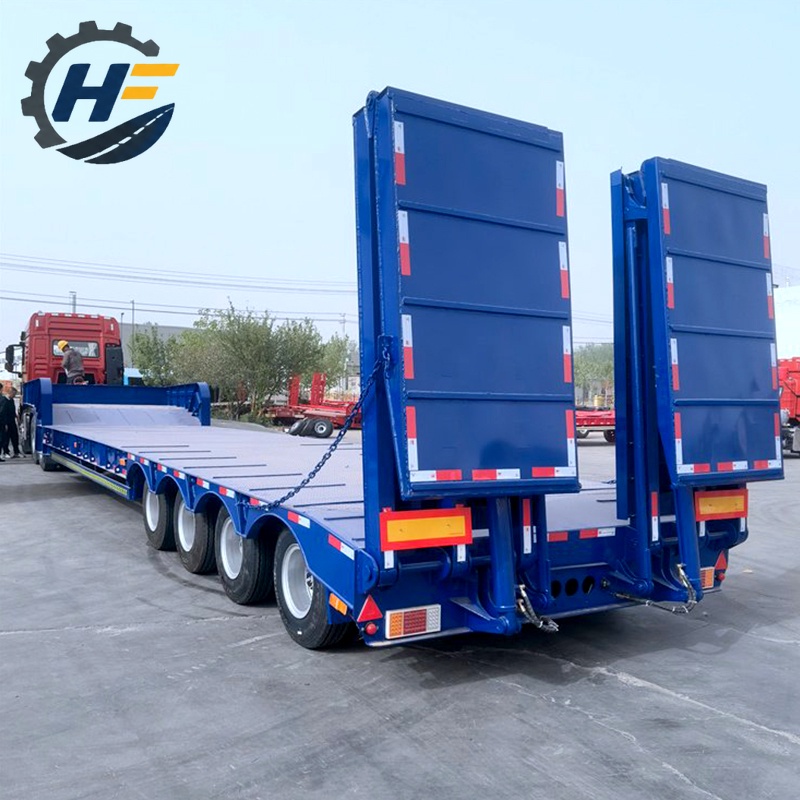

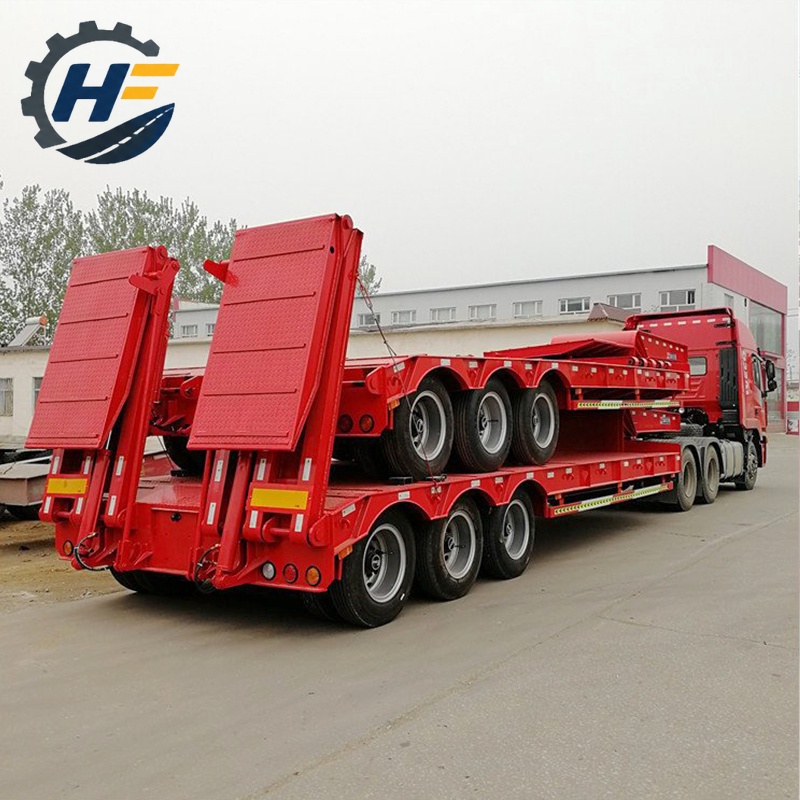

4 Axles Low Bed Trailers

  • 4 Axles Low Bed Trailers
  • 4 Axles Low Bed Trailers
  • 4 Axles Low Bed Trailers
  • 4 Axles Low Bed Trailers
  • 4 Axles Low Bed Trailers
  • 4 Axles Low Bed Trailers

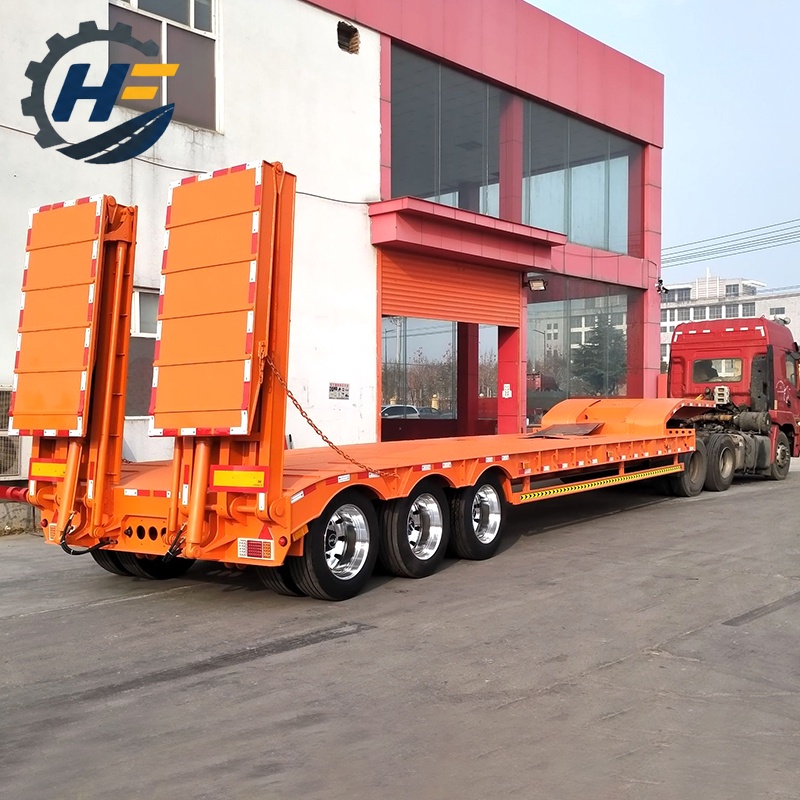

4 Axles Low Bed Trailers

Dimension: 14000x3000x3750mm (customized according to your requirement)
Capacity: Max.100tons
Axle: 4 axles, BPW / FUWA brand
Landing Gear: JOST brand with two speeds
Suspension: Mechanical suspension reinforced type
Leaf Spring: 90mm(W)*16mm(T)*10pcs
Tire: 315/80R22.5, 12R22.5
Color: Optional
+8618000000000
18000000000@qq.com
+8618000000000
Contact Us

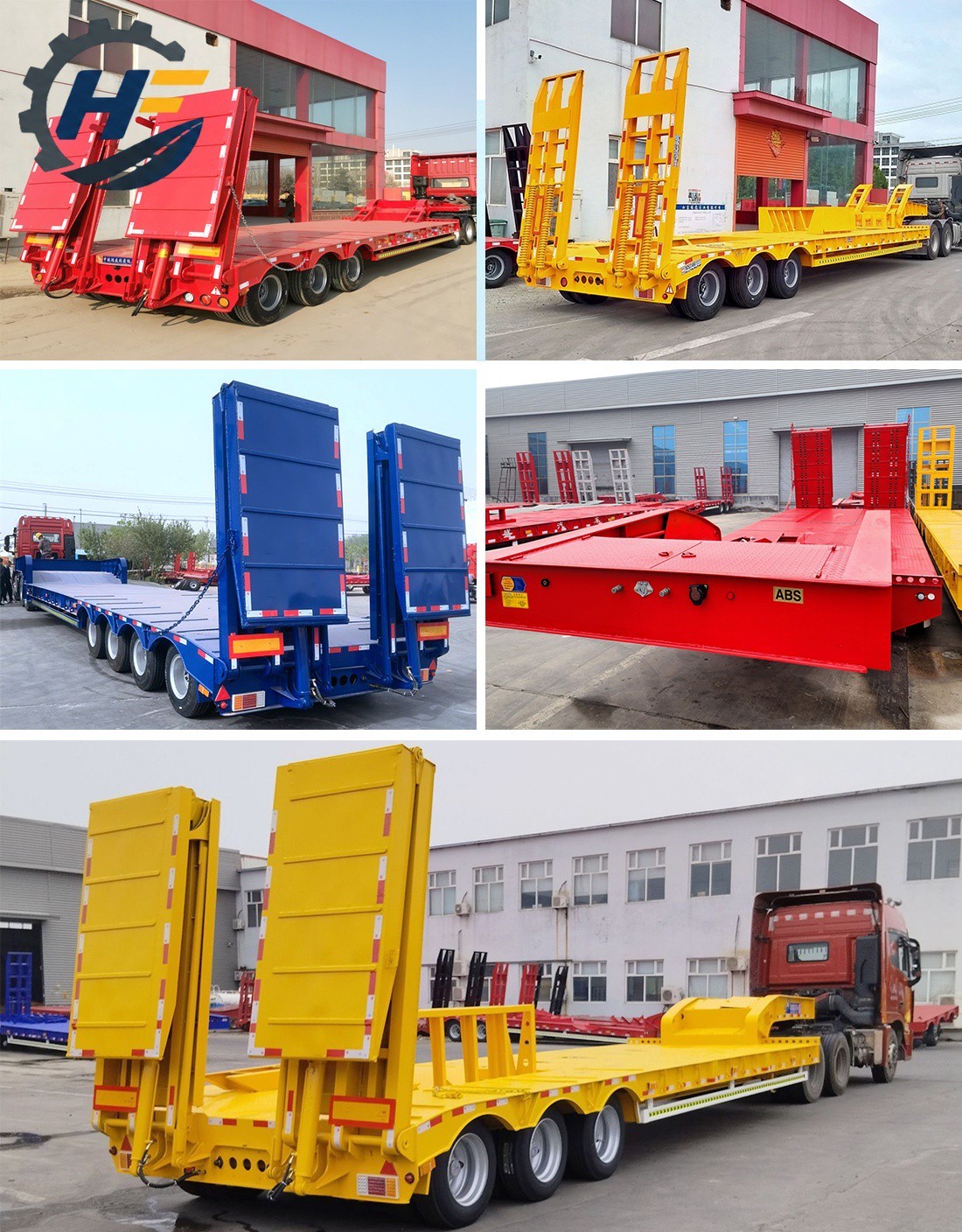

◉ PRODUCT DISPLAY

◉ 4 Axles Low Bed Trailers

Our Factory offers Low Bed Trailers designed to carry 30tons, 40tons, 60tons, 80tons, 100tons, 120tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation. 4 Axles Low Bed Trailers use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload. We adopt famous brand parts, like WABCO braking valve, JOST land gearing, FUWA, BPW axles, ensure the long service life of the trailers.


◉ PRODUCT PARAMETERS


Series of low flat semi-trailer has flat plate, concave beam and tire exposed structure, its frame is stepped, longitudinal beam section is I-shaped, with high stiffness and high strength characteristics.
The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
The use of three-axis balance type, two-axis balance type or rigid suspension, equipped with a mass balance block between the front and rear leaf springs, can make the deflection of the front and rear leaf springs equal changes, so that the front and rear axes are balanced.
Carbon dioxide gas protection welding is adopted, and the entire frame is treated by shot peening, making the vehicle more beautiful.
                              Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available)
Product Name2 axles lowbed semi trailer3 axles lowbed semi trailer4 axles lowbed semi trailer
Size(mm）12500×3000×110013000×3000×110014000×3000×1100
Payload40000KG60000KG80000KG
Plate4mm checked plate4mm checked plate5mm checked plate
Axles2×13ton capacity3×13ton capacity4×13ton capacity
(Brand optional)(Brand optional)(Brand optional)
LadderHydraulic ladder or Mechanical spring ladder
Main beamHeight: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm
Material is Q345B Steel
Side beam250mm I beam; 20mm channel steel ( Material is Q235steel )
Bottom Platform4mm thickness diamond steel plate
SuspensionMechanical suspension (Air suspension optional)
Leaf spring90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
(specially intended for overseas markets)
Tire12R22.5/11.00R20 8pcs (Other size optional)
Rim9.00-22.5/11.00R20 8pcs (Other size optional)
Kin pin2’’/3.5’’ bolt type
Landing gear28Ton two speed
Braking systemDouble air chamber, brake valve, 45L air tanks; ABS optional
ElectricalLEDlight, 7ways, 24V
AccessoryOne tooling box with a set of standard trailer tool
Painting1.Sand blasting processing clean rust.
2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.
Other DescriptionsThe cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the
transportation.
Usage

It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks,power plant equipment o

rmachine, and all sorts of steel products.

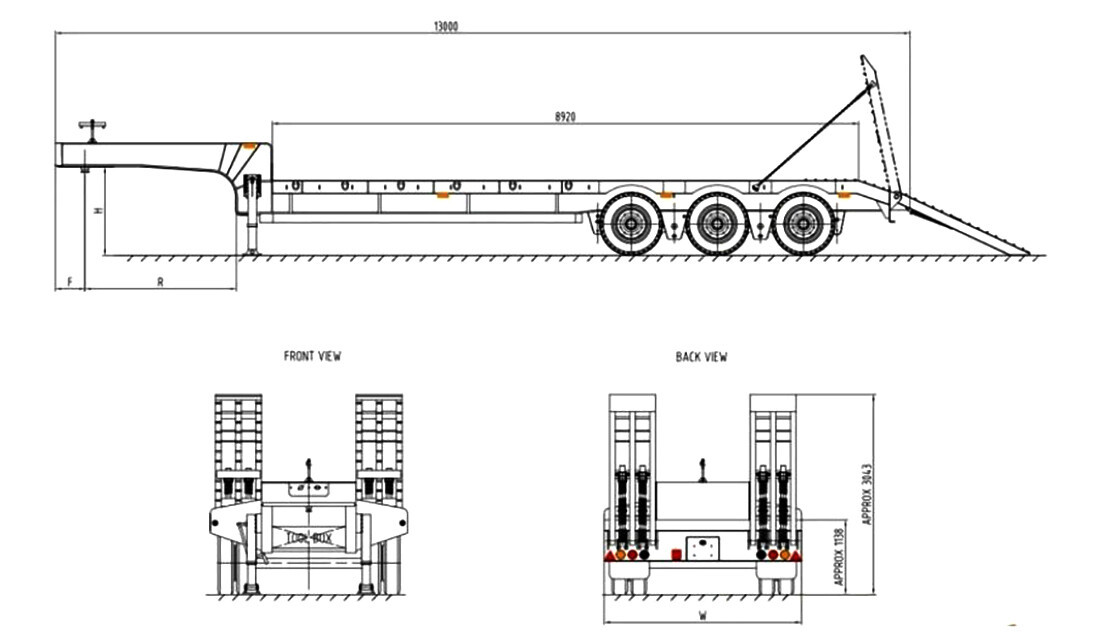

Other SpecificationsIt's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders belong to optional components), with the overall height of 1710 mm.
RemarkWe can design model according to client's requirement

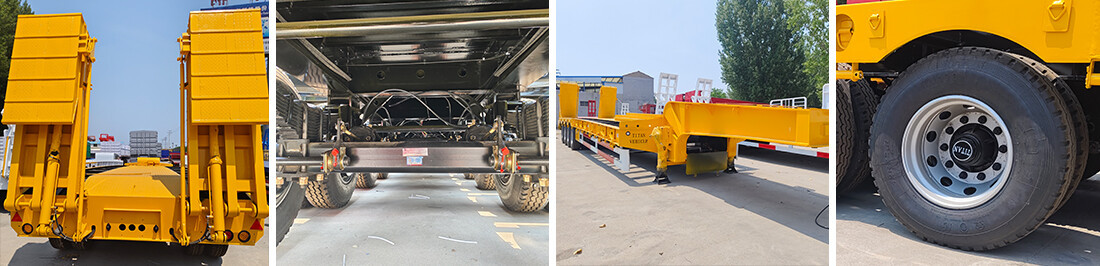

PRODUCT DETAILS


Electrophoresis Painting

Corrosion resistant and strong print adhesiveness up to 9 years. The whole body painting process makes sure no spots are missed and gives the best anti-rust performance.

Loading Ramp

Suitable slopes, automated operation, equipped with electric or hydraulic systems and slopes designed with expandable functions that can be adjusted to suit different loading requirements.

Mechanical Climbing Ladder

Strong structure and carry capacity, provides effective support and protection for heavy equipment and machineries during loading and unloading process.

Tires

High quality tire brands such as Double Coin/Linglong/Triangle can be optioned for the best performance.


◉ PACKAGING AND TRANSPORTATION



◉ FAQ

Q： What is the warranty period for the equipment?
A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?
A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?
A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?
A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
