30-40 CBM Fuel Tank Semi Trailers

The fuel tanker trailer has a variety of refueling or oil transportation functions according to different purposes and usage environments. Including oil absorption, oil pumping, fuel storage and various oil packaging and distribution functions. The special part of fuel tanker trailer is composed of tank body, power take-off, transmission shaft, gear oil pump, pipe network system and other components. The pipe network system consists of an oil pump and a three-way four-position ball valve.

+8618000000000

18000000000@qq.com

+8618000000000

Contact Us

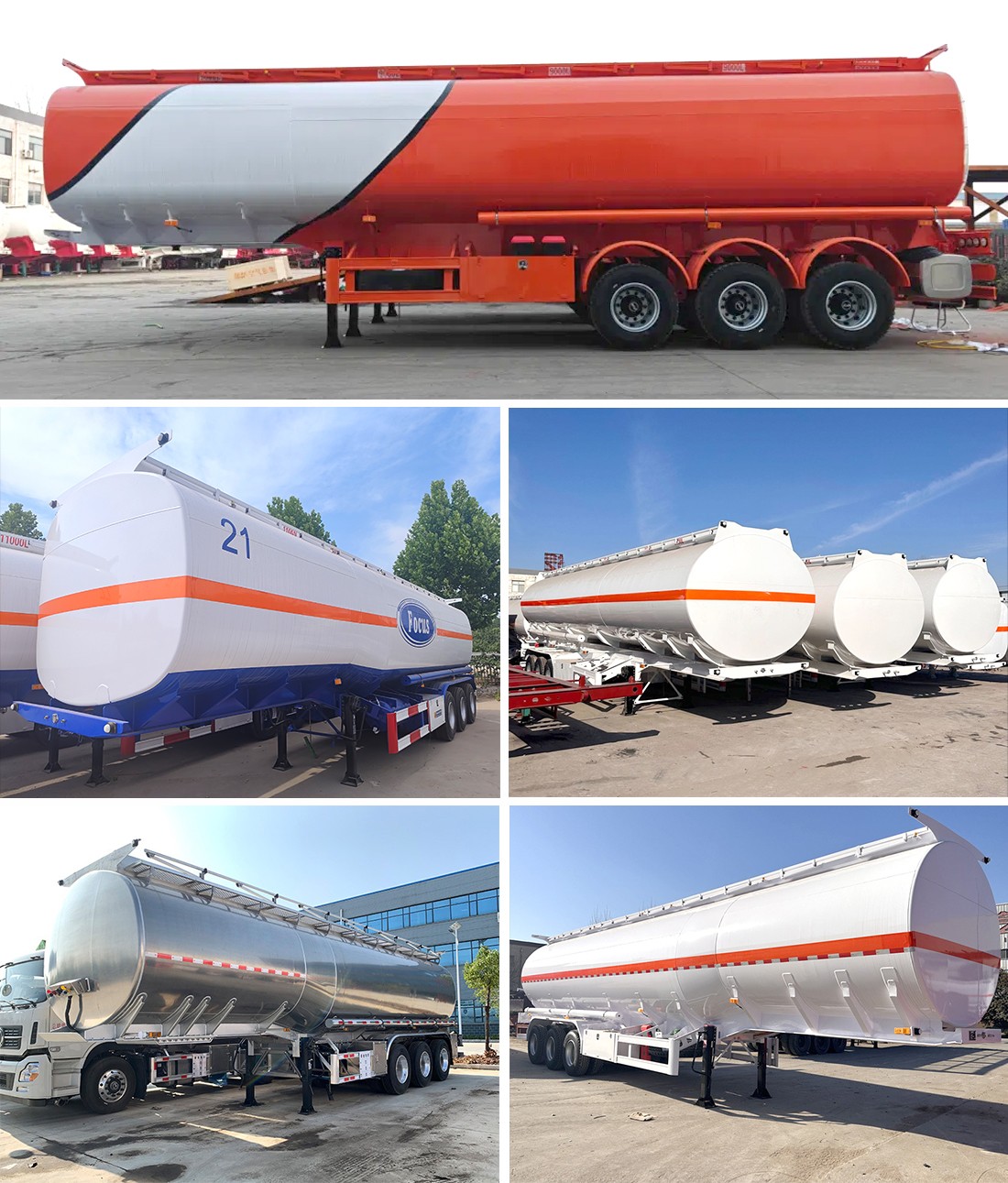

◉ PRODUCT DISPLAY

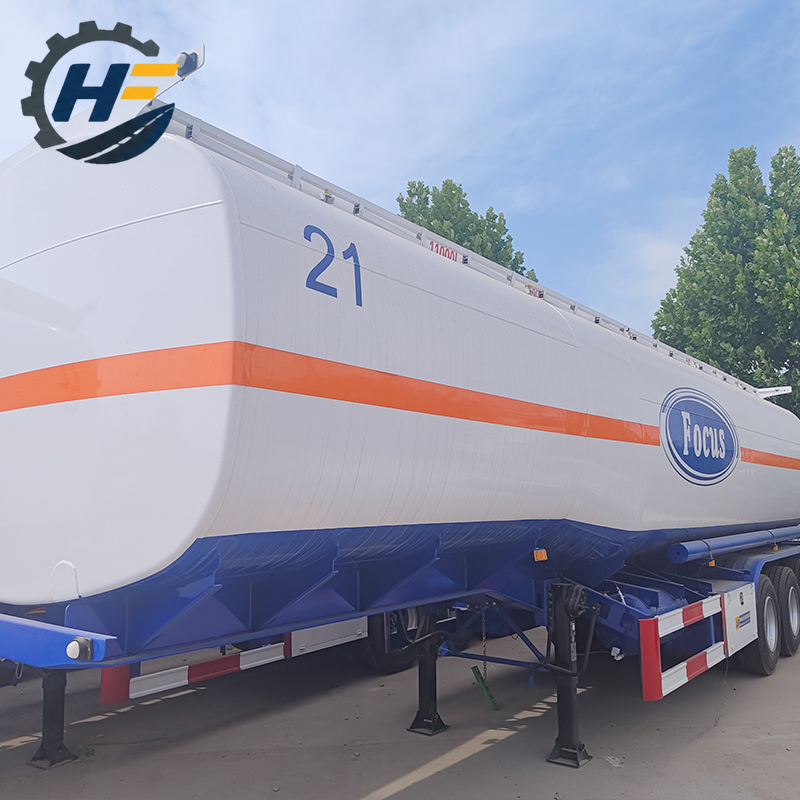

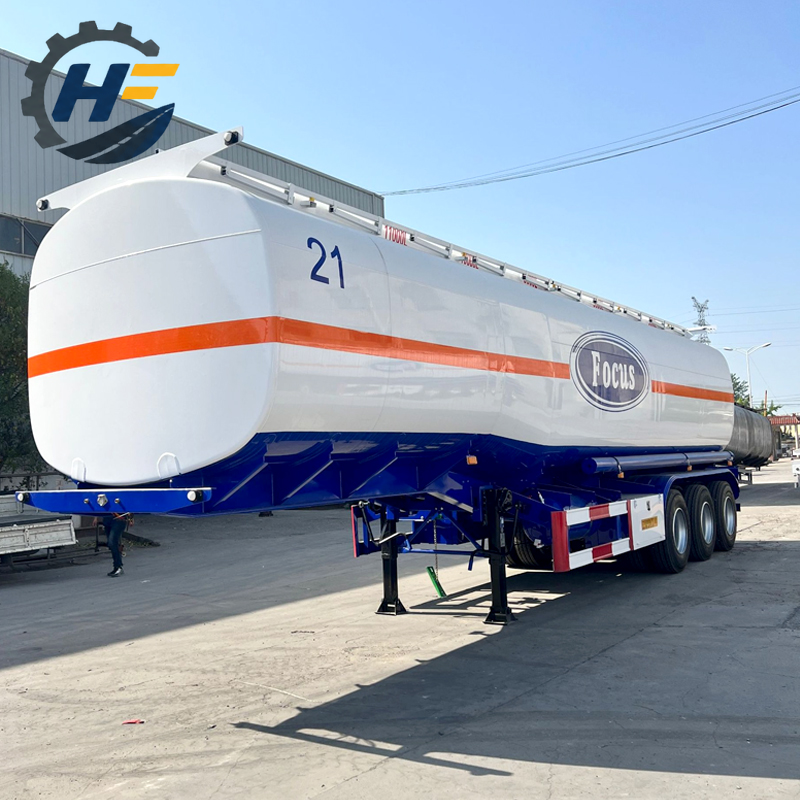

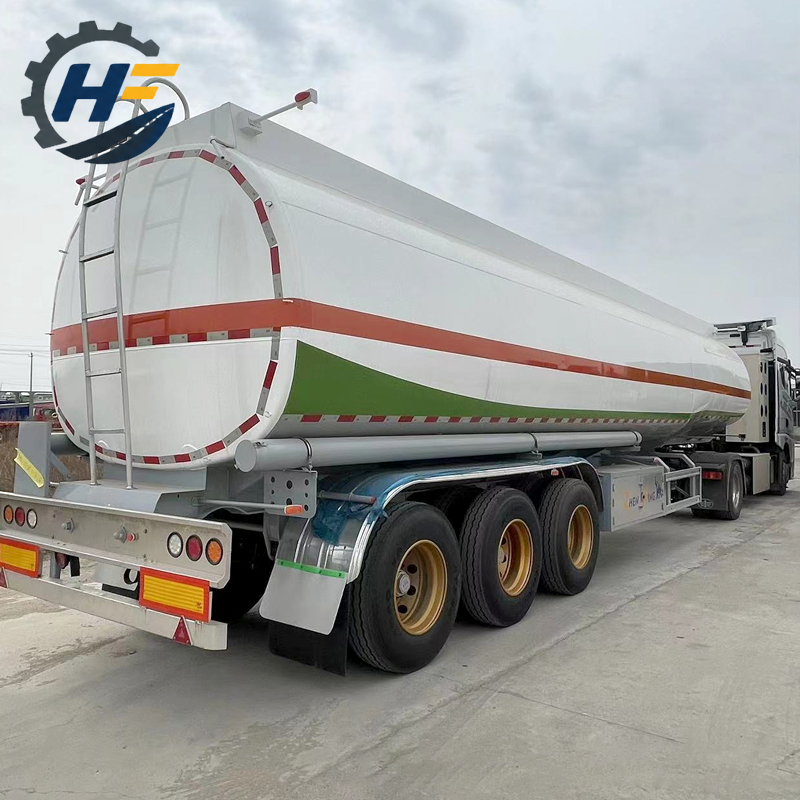

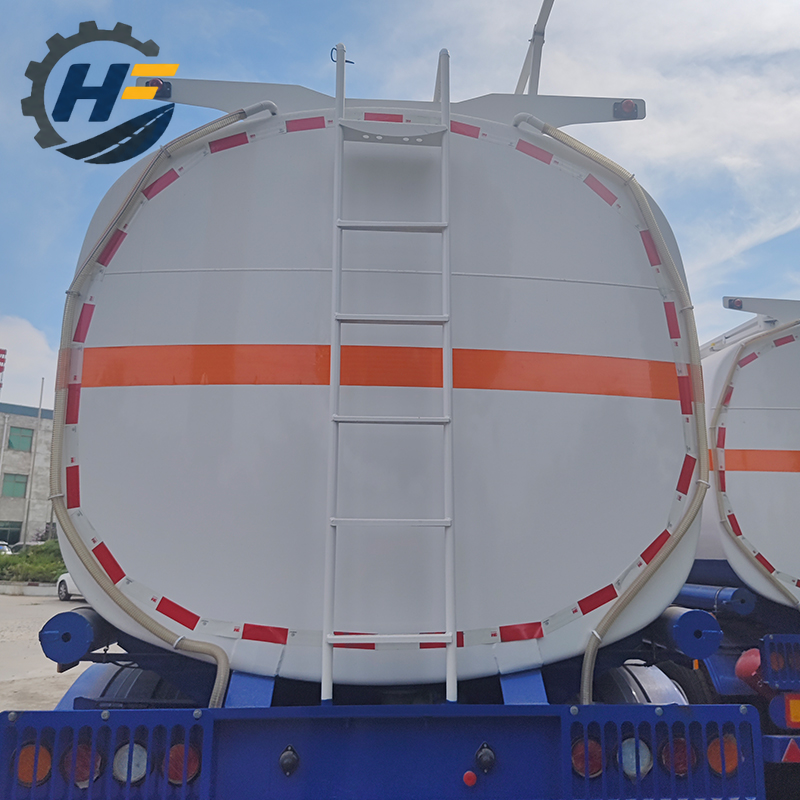

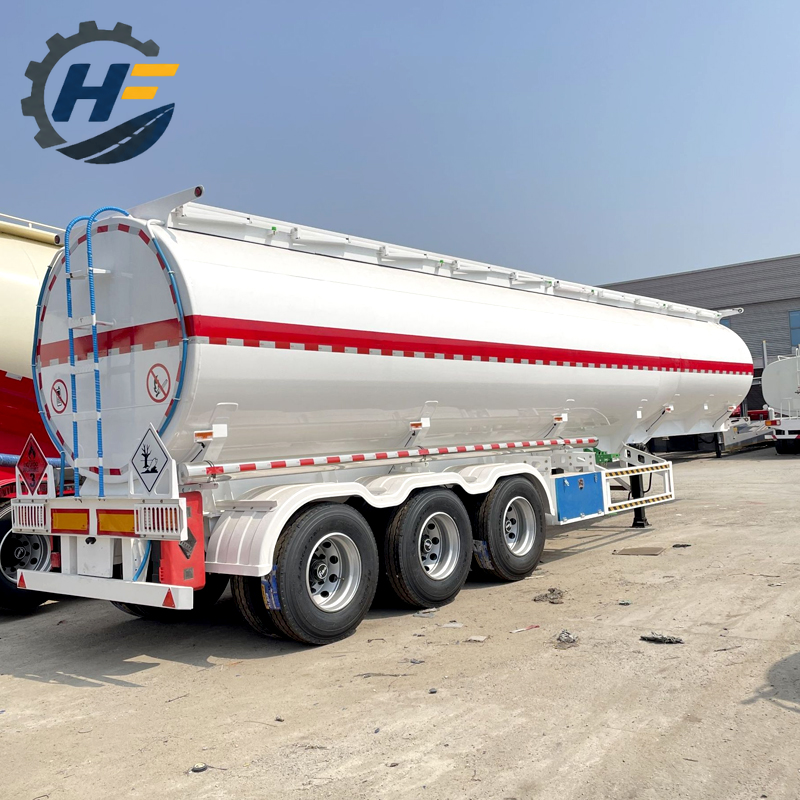

◉ 30-40 CBM Fuel Tank Semi Trailers

◉ PRODUCT PARAMETERS

Product features

With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
The tank body is automatically welded by an advanced large-scale special welding machine.
Our tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
The waved board reduces the impact of the liquid on the tanker.
We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
We can also produce the tanker trailers for different liquid like Fuel, Petrol, Diesel, Crude oil, Bitumen, Palm oil, JET A-1, Water, Liquid chemical, Food oil etc.

Specification
SIZE	10800×2500×3690mm 10900×2500×3820mm 11300× 2500×3700mm	Volume	35000L 40000L 45000L 50000L 60000L
Payload	28T - 70T	GVW(kg)	40000
Tank /Thickness	5/7MM	Axle distance	5180/1310+1310
Bottom valve
3", 4" Contral by Pneumatic Block
Discharge vale
5" API Adaptor Valve or 3" Spherical Valve
Main Beam	Q345 Carbon steel material	Handrail	Manual, Pneumatic
Suspension	Mechanical, Air, Bogie	Axles	2- 4pcs 13-20tons BPW or Fuwa Axles
Brake system	6pcs T30/30 Brake Chambers, WABCO relay valve	Landing Leg	JOST E100
Tire	11.00R20 12PR, 12R22.5 12PR 13R22.5 18PR	King Pin	JOST 2" or 3.5 " Bolting Type
Painting	dusting	Shipping Terms	By container
Rear wheel distance
1840/1840/1840

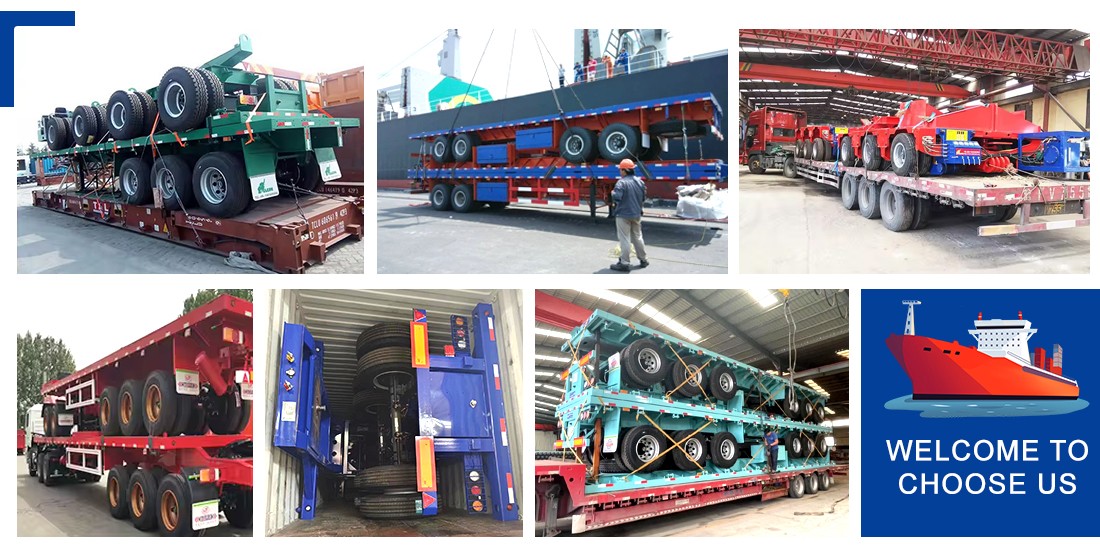

◉ PACKAGING AND TRANSPORTATION

Our company's flatbed trailers are rigorously tested before they leave the factory to ensure quality. We have professional technical personnel to operate.

In addition, spray a layer of wax on the semi-trailer to prevent seawater erosion, and then pack a layer of rain cloth to prevent moisture.

By Container: Price is usually the lowest. Capacity below 40 CBM
By bulk ship
By Ro-Ro ship: Price is high but protect the trailer very well
By flat Rack

◉ FAQ

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
