Previous Next 6 Car Hauler Trailer

Overall dimension: 16000×3000×3400mm
Loading capacity(T): 40~100T
Axle: 13T/16T, FUWA / BPW
Rim: 8.0~20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: Width 90mm, Thickness 13mm, 10layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper Plate: 20mm, Middle Plate: 12mm, Lower Plate: 20mm
Material: Q345B carbon steel

+8618000000000

18000000000@qq.com

+8618000000000

Contact Us

◉ PRODUCT DISPLAY

◉ Previous Next 6 Car Hauler Trailer

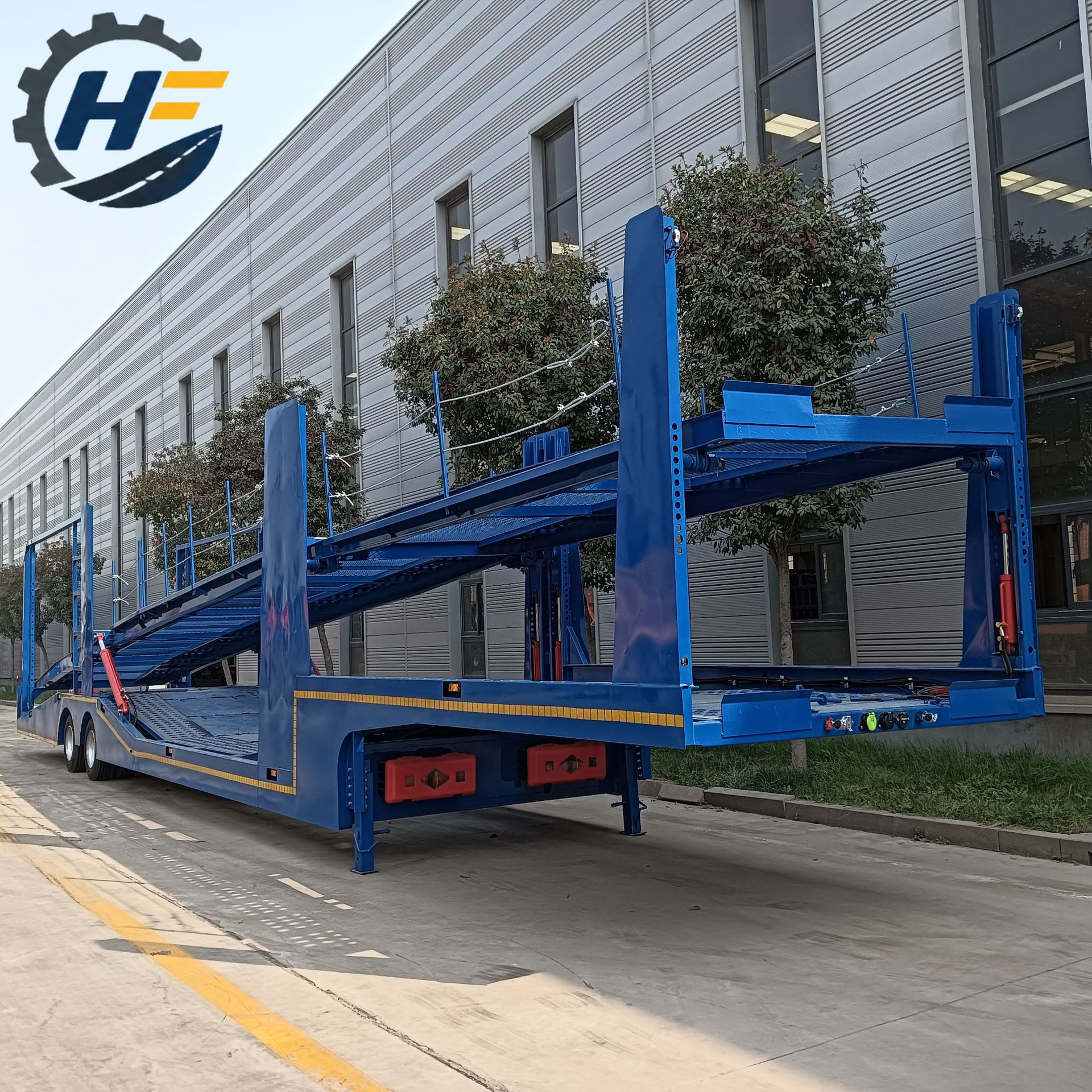

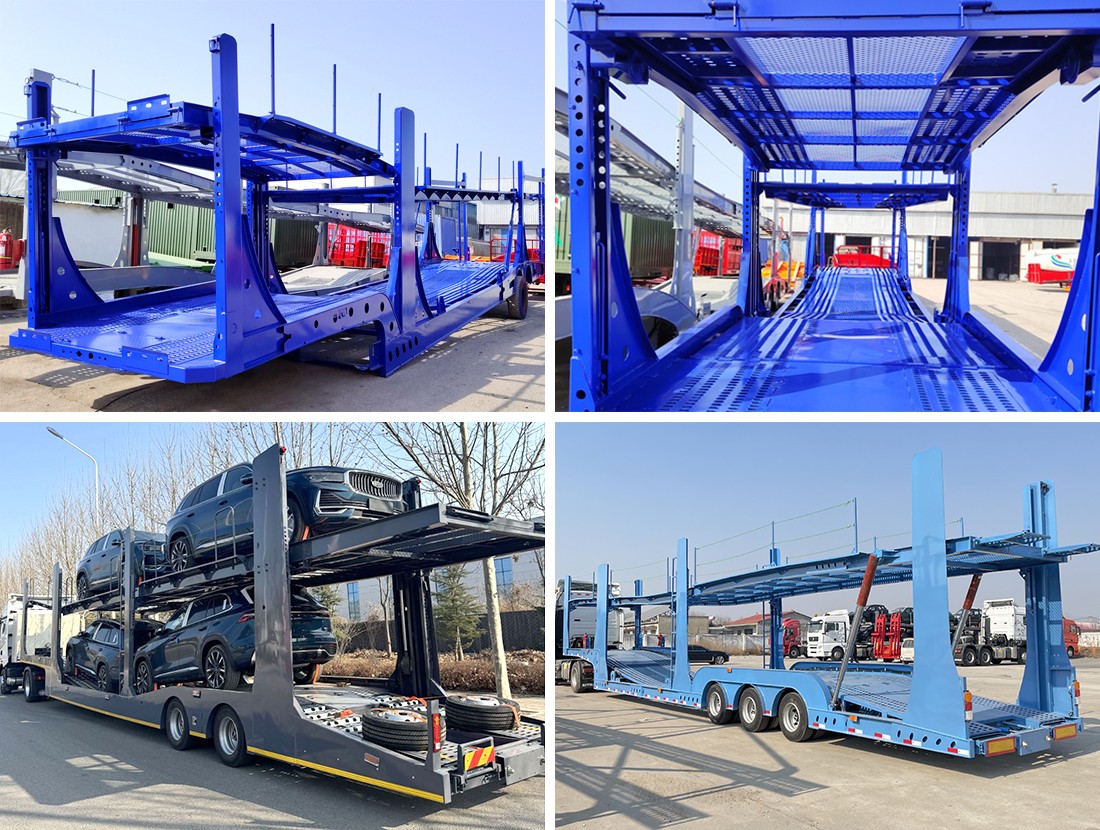

The Car Hauler Trailer is a vehicle that transports cars. According to the structure, there are three models of car transport, which are double bridge twin, double bridge single and single bridge twin. According to the appearance, it is divided into skeleton type, semi-closed type and closed type.

The car can be made into different lengths according to customer requirements, the frame is welded I-beam, and the whole body is fully automatic submerged arc welding and carbon dioxide gas shielded welding. After the welding is completed, the shot blasting treatment is carried out to eliminate the welding stress and improve the adhesion of the paint surface, so that the quality is stable and the appearance is beautiful. The upper bottom frame can be divided into two to three pieces, and the height is adjusted by hand hoist and oil cylinder. The front plate of the closed enclosure is covered with a stamped small corrugated plate, the side is covered with a stamped corrugated plate or corrugated plate, and the top is equipped with a pole and cloth. The vehicle is equipped with a toolbox, a spare tire frame, and a drip brake system to improve the safety of vehicle transportation.

We can provide all the models you need and support customization. Welcome to leave your inquiry if you have any questions!

◉ PRODUCT PARAMETERS

Product features

Novel structure, light weight, high strength, beautiful appearance, easy operation; good stability and safety performance, the vehicle is equipped with a toolbox, spare tire frame, and installed drip brake system to improve the safety of vehicle transportation;
Strengthen chassis design, reasonable distribution of front and rear axle load, greatly increase the load capacity and reliable performance of the vehicle;
The upper bottom frame can be divided into two to three pieces, and the height of the hoist and the cylinder can be adjusted by hand; the front plate of the closed enclosure is covered with a stamped small corrugated plate, the side is covered with a stamped corrugated plate or corrugated plate, and the top is equipped with a pole and cloth.

Product Name	Car Carrier Semi Trailer

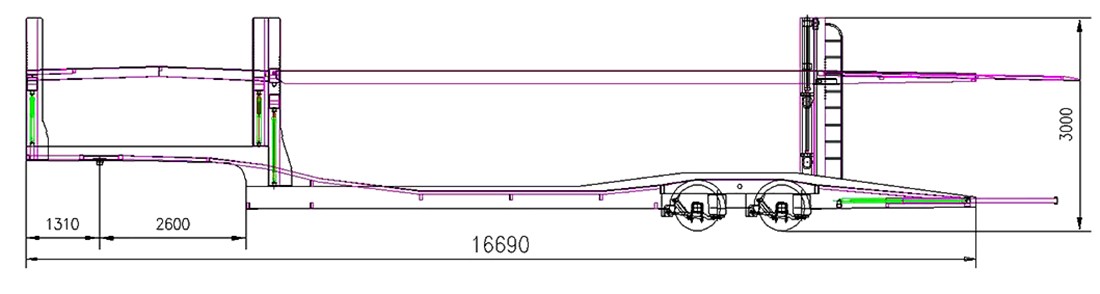

Dimension(Lx W x H)（mm）	16690x2700x3000 mm (customizable)
Tare weight (kg)	9800 (depends on final configuration)
Max Loading Capacity (kg)	60000(customizable)
Main Beam	Q345B / T700 Steel Height 300mmupper plate is 12mm,down plate is 12mm,middle plate is 8mm. (customizable)
Type	Two decks, top front deck and rear deck can be lifting and down separately by hydraulic system
Lifting type of upper floor	Hydraulic and manual lifting mechanism
Quantity of carried cars	8 units (4m per car)
Axles	13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
Rim	9.00-22.5/8.00-20/8.50-20
King Pin	2"(50mm)or3.5"(90mm) JOST or other brand optional
Suspension	Mechanical Suspension Air Suspension(American or Geman)
Leaf Spring	90(w)mm×13/16(thickness)mm×10(layer)
Landing Gear	28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
Brake System	Dual line brake system, Air chamber T30/30, 3×40L gas storage drums
ABS System	None or installed as your requirement.
Electrical system	1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,side light, side reflector etc.)
Color	As per customer requirement
Spare Wheel Bracket	1 piece of Spare Wheel Bracket
Tool box	1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
Painting	Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
Packing	Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
Delivery	From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Remarks	Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according to specific requirements.

◉ PACKAGING AND TRANSPORTATION

Our company's flatbed trailers are rigorously tested before they leave the factory to ensure quality. We have professional technical personnel to operate.

In addition, spray a layer of wax on the semi-trailer to prevent seawater erosion, and then pack a layer of rain cloth to prevent moisture.

By Container: Price is usually the lowest. Capacity below 40 CBM
By bulk ship
By Ro-Ro ship: Price is high but protect the trailer very well
By flat Rack

◉ FAQ

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
