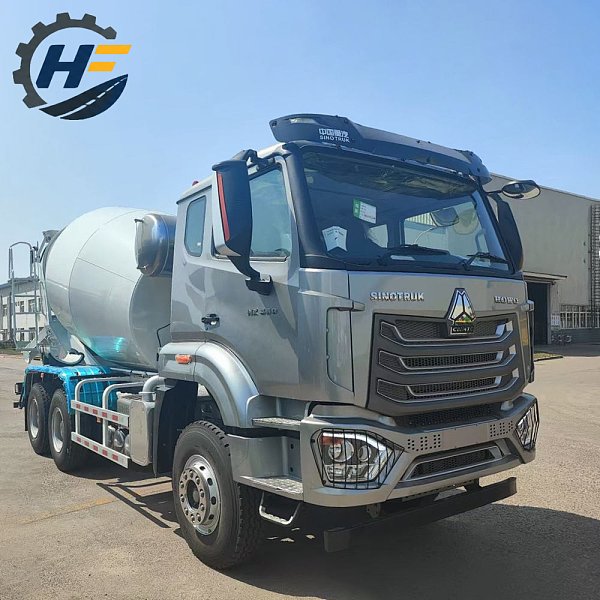

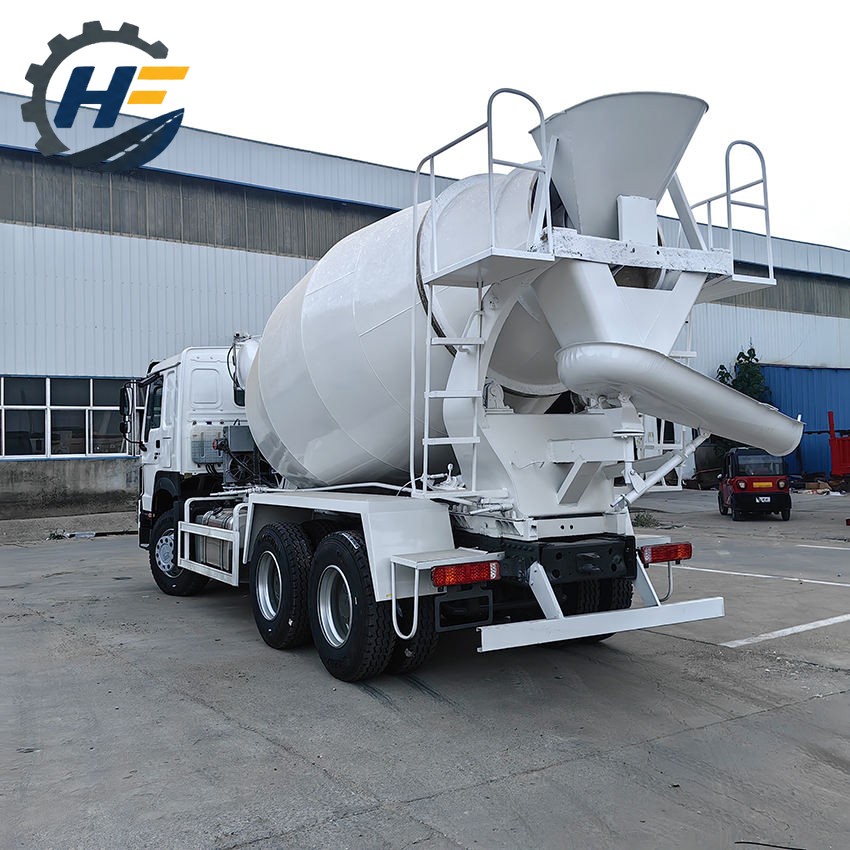

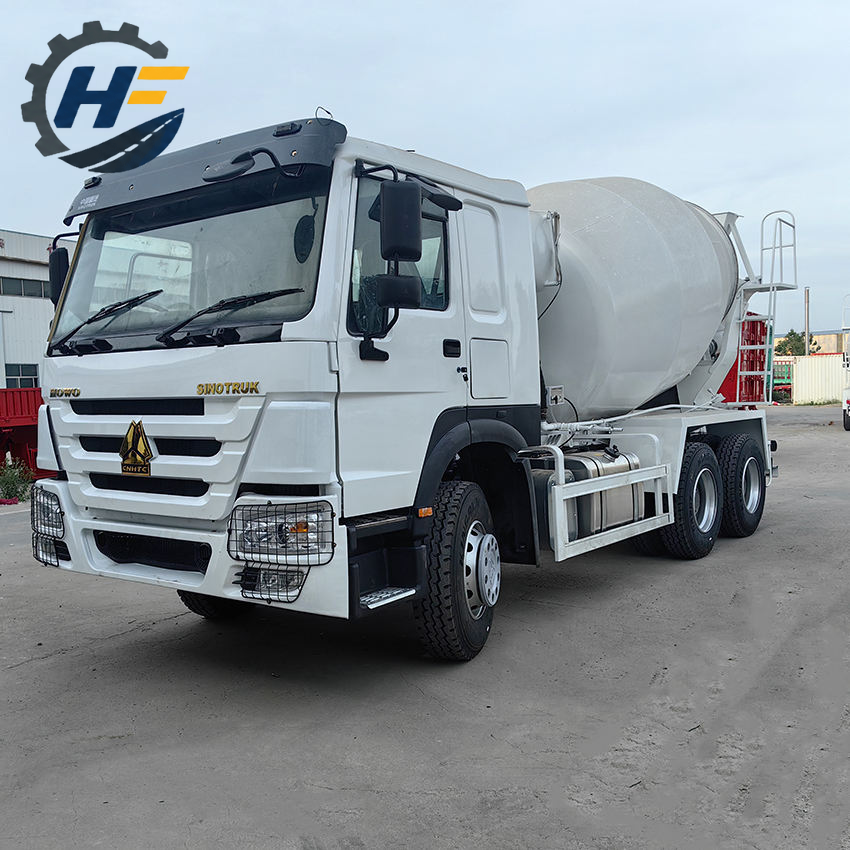

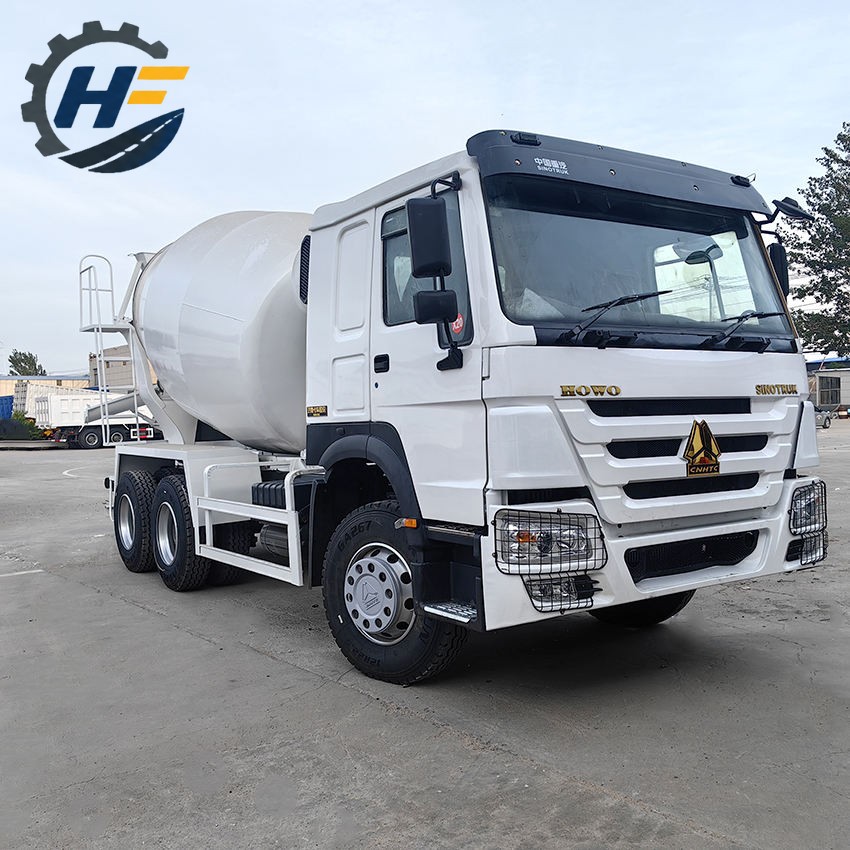

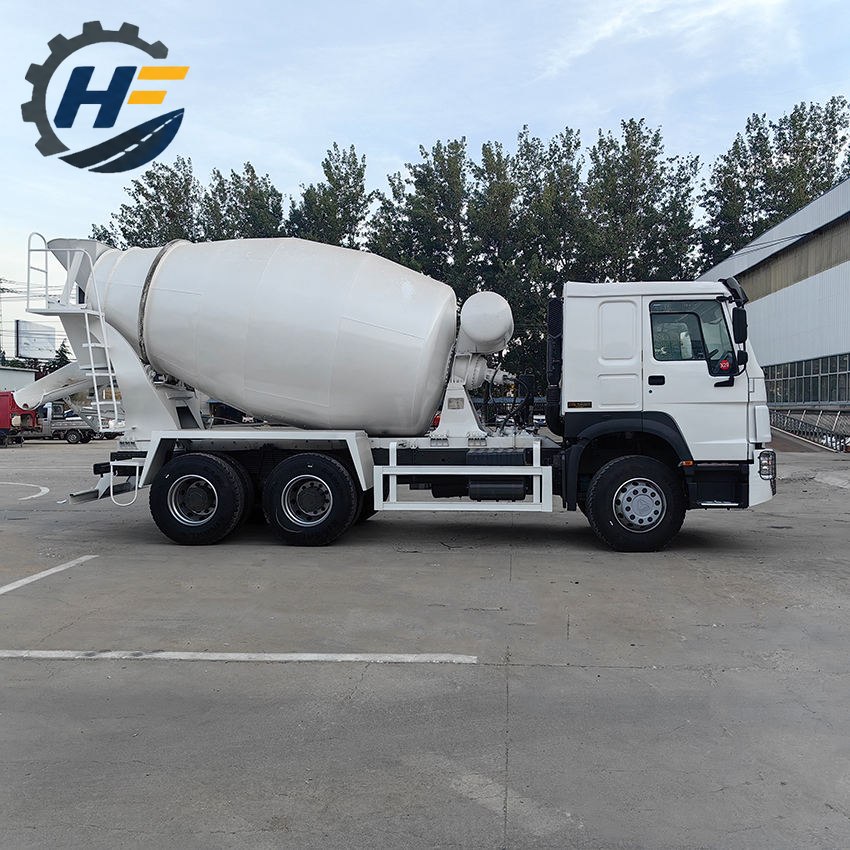

Sinotruk Howo 6x4 Concrete Mixer Truck

Name: Sinotruk Howo 6x4 Concrete Mixer Truck
SKU: 0

Model Number: Howo Concrete Mixer Truck
Brand: Sinotruk
Drive Type: 6x4
After-sales Service: 24Months
Place of Origin: China
Payment Terms: T/T, Western Union
Delivery Time: 15-25 working days after received your payment
Shipping: Ro-Ro/ Bulk cargo / Container shipment / SKD / CKD / etc.

+86 18006357383

18000000000@qq.com

+86 18006357383

Contact Us

◉ PRODUCT DISPLAY

◉ PRODUCT PARAMETERS

Brand	Sinotruk Howo
	Driving type 6×4, 8×4, LHD HW76 single bed
Vehicle Main Dimensions	Overall dimensions (L× W×H)mm	10245×2496×3450
	Wheel base (mm)	3600+1350
	Wheel track (front/rear) (mm)	2022/2022
	Approach/Departure angle(°)	16/24
Max. driving speed(km/h)		90
Engine	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Model	WD615.47
	Emission standard	EuroII
Gearbox	10 forwards & 2 reverse
Steering	Left hand drive
Tire	12R22.5 tubeless tires with one spare
Mixer Drum	Mixer Capacity	16 cubic meters
	Drum thickness	6mm
	Blade thickness	4mm
	Tanker Material:	16MnQ345 Carbon Steel
	Filling Rate(%)	59
	Input Speed (m3/min)	≥2.8
	Output Speed (m3/min)	≥1.2
	Surplus Ratio	≤0.5
	Tanker Rotate Speed(rpm)	0~17
	Hydraulic Pump	Italy Brand: PMP
Drum Drive System	Hydraulic Motor	Italy Brand: PMP
	Speed Reducer	Germany Brand
	Radiator	KAITONG
	Water Tank Volume(L)	400

◉ PACKAGING AND TRANSPORTATION

Packing and shipping

Usually our truck can be shipped by Ro-ro ship, Bulk ship, Container or Flat rack. Choose the most safety and economy solutions shipping customers trailers. So customers can get them happily. We will choose the most economical, fastest and safest way for customers.

Packing Detail

RoRo or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided

◉ FAQ

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
